World advanced design, top brand configuration, high accurancy control

Slitter Machine Suppliers

Dahua Industry Control Technology Co., Ltd is China intelligent slitters manufacturers and slitter machine suppliers, we offer wholesale slitter machines online to help you save time, money and labor. With the application of intelligent technologies, our products have achieved high efficiency and high-quality production with minimum dependence on operators. Currently, our products have been very popular among customers because of reliable R&D technologies, complete product series, superior quality and reasonable price, the products are exported to Germany, the United States, Japan and other developed countries.

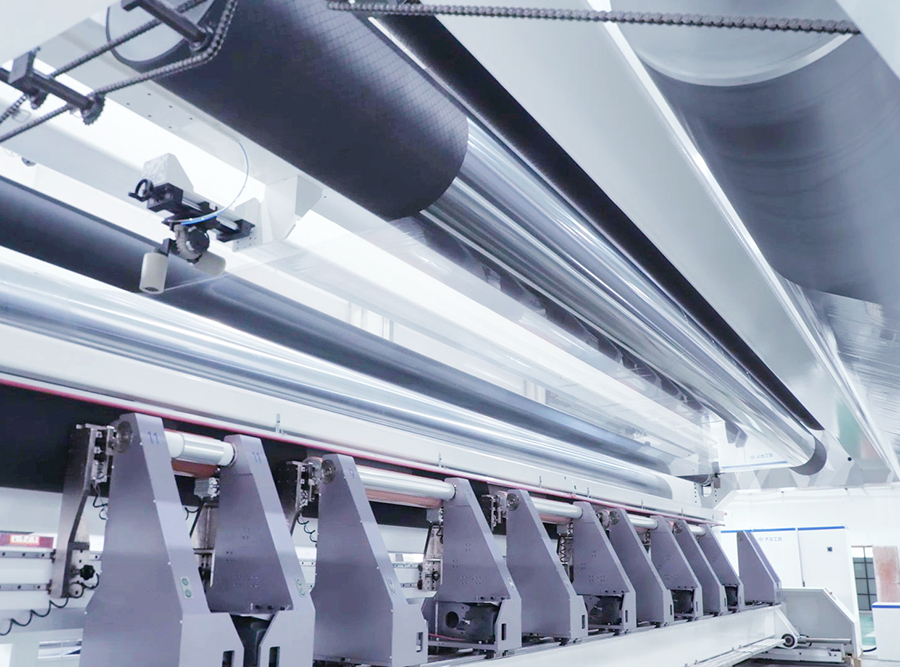

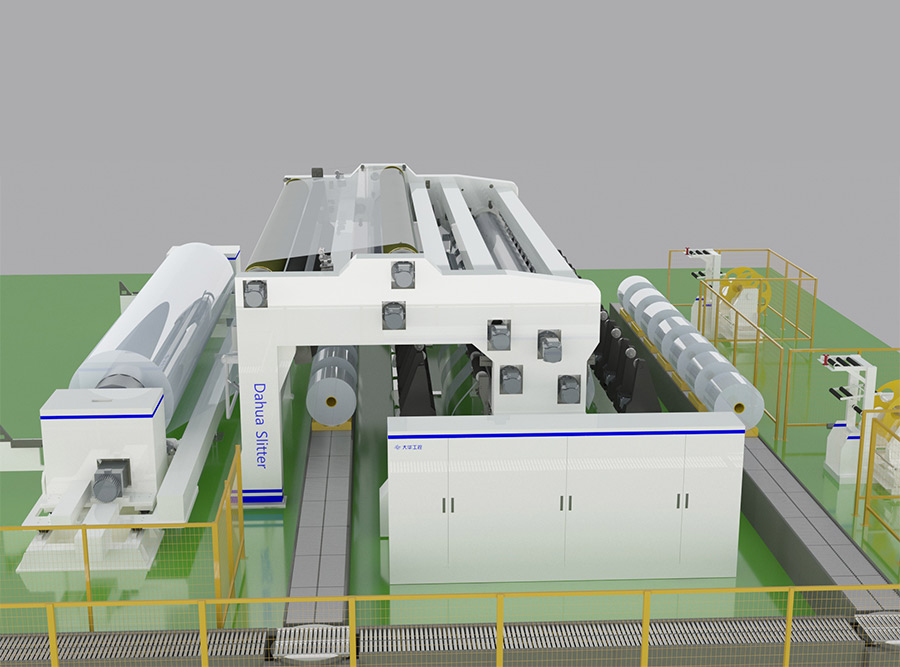

  • Ultra wide primary station slitter(8m-11m)

    Ultra wide primary station slitter(8m-11m)
    Ultra wide primary station slitter(8m-11m)
    Ultra wide primary station slitter(8m-11m)
    Ultra wide primary station slitter(8m-11m)
    Key factors
    1.Suitable for 8 mtrs to 11 mtrs web width biaxially oriented film such as BOPET,BOPP, etc.
    2.Working speed 1200 m/min.
    3.Automatic razor cut knife position and rewinding station position.
    4.All SIEMENS servo control system.
    5.Individual direct driven carbon fiber roll.
    6.Bottom linear rewinding technology.
    7.Intelligent production, technology integrated into machine.

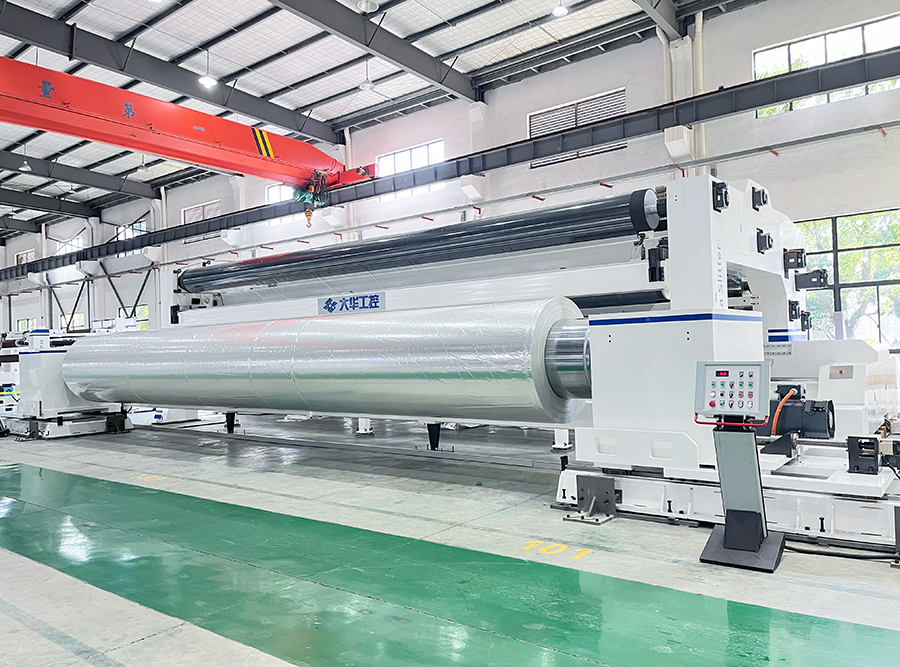

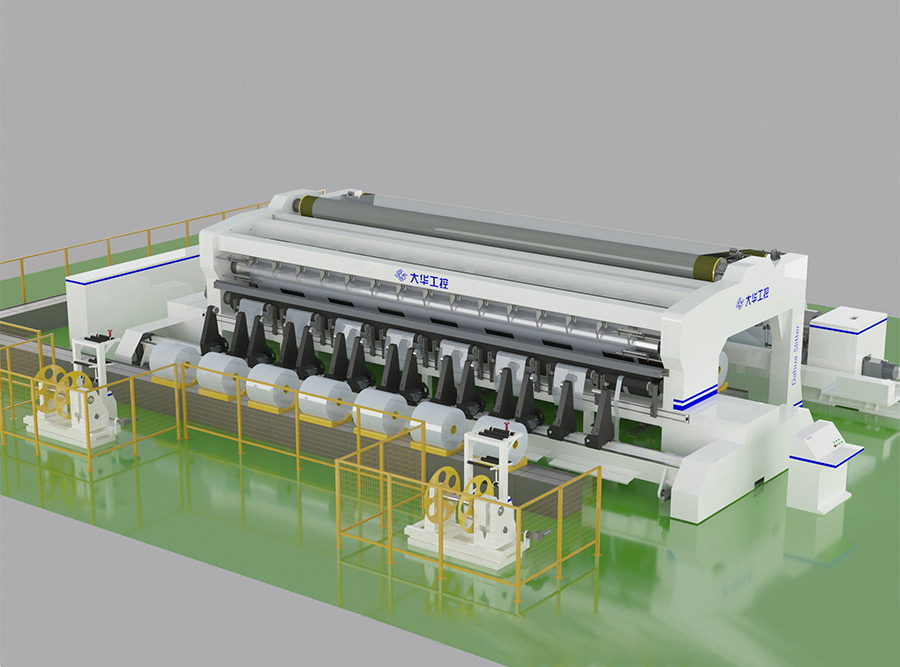

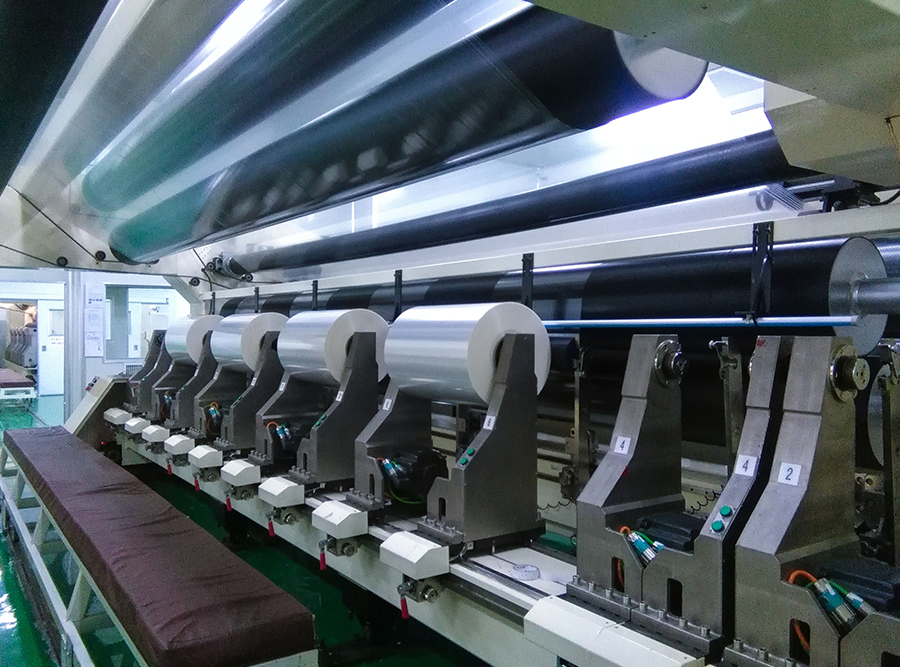

  • Wide primary station slitter(6m-8m)

    Wide primary station slitter(6m-8m)
    Wide primary station slitter(6m-8m)
    Wide primary station slitter(6m-8m)
    Wide primary station slitter(6m-8m)
    Key factors
    1.Suitable for 6 mtrs to 8 mtrs web width biaxially oriented film such as BOPET and it’s function film, etc.
    2.Machine speed can be MAX 600 m/min、800 m/min、1200 m/min.
    3.Hydraulic rewinding or bottom linear can be optional.
    4.Individual direct driven carbon fiber roll or belt driven, depends on disign.
    5.All SIEMENS servo control system.
    6.Intelligent Process Technology.

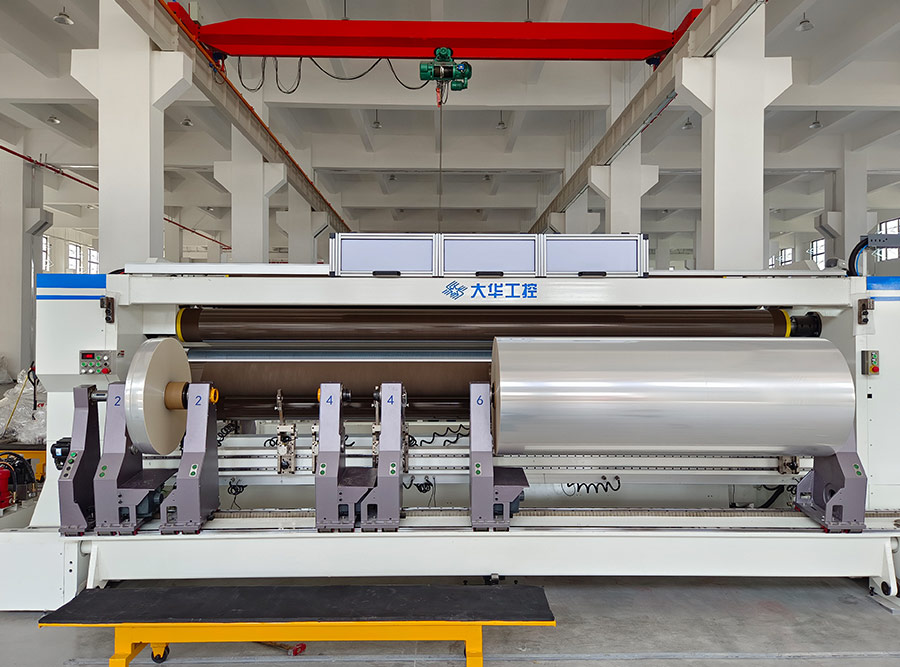

  • Wide primary station slitter(4m-6m)

    Wide primary station slitter(4m-6m)
    Wide primary station slitter(4m-6m)
    Wide primary station slitter(4m-6m)
    Wide primary station slitter(4m-6m)
    Key factors
    1. Suitable for 4 mtrs to 6 mtrs web width biaxially oriented film such as BOPET and it’s functional film, BOPP and it’s function film, Cast film etc.
    2.Motorized screw bottom linear(2.0 plus), hydraulic rewinding(2.0) and motorized screw top linear(3.0) can be selected depends on perference and budget.
    3.Automatic knife position and station position. Shear cut can be optional.
    4.Machine speed Max 600m/min, 800m/min or 1000m/min depends on request.
    5.All SIEMENS servo control system.
    6.Intelligent Process Technology.

Basic Parameter

Slitting Material

BOPET, BOPP, BOPA, CPP,etc

(Depend on request)

Material Thickness

2.5um Upwards

(Depend on request)

Unwinding Width

4000mm to 10400mm

(Depend on request)

Unwinding Diameter

1000mm/1200mm/1500mm

Rewinding Width

300-2500mm

Rewinding Diameter

800mm/1000mm/1200mm

Rewinding Stations Numbers

8/10/12


Slitting System


Razor cut (Shear cut can be optional)

Working Speed

600m/min, 800m/min, 1000m/min, 1200m/min


Control System


SIEMENS servo (Germany)

Roller surface

Cork tape/rubber/special coating

Automatic Knife Position

Include

Automatic Station Position

Include

Remote Control Service

Include



* The above parameters is only for reference, the detail specifications will depend on customer’s requset and final design.

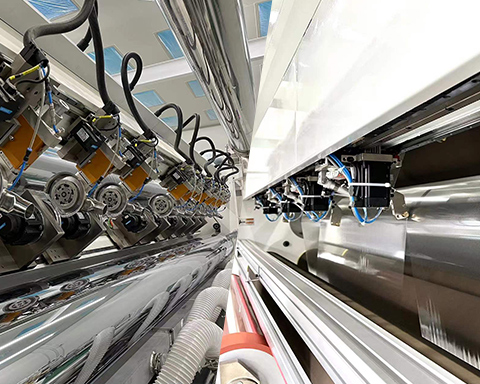

  • Automatic Knife Position

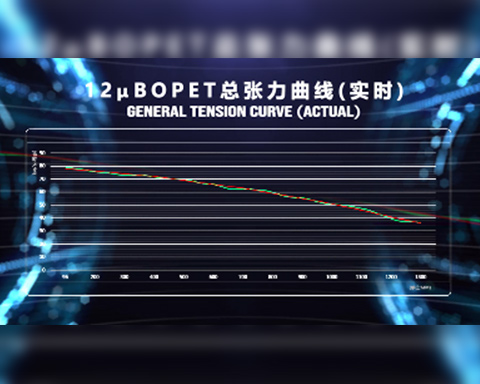

  • Smart Process Technology

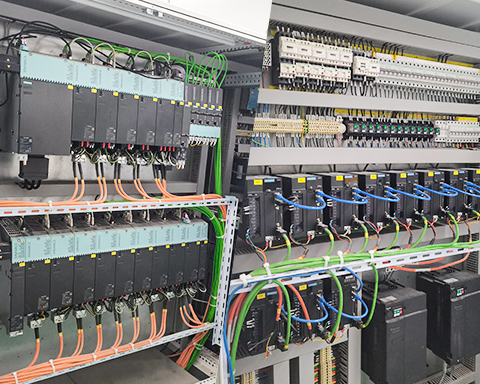

  • Electrical Cabinet

Intelligent slitter, one key solution

  • Reduce the dependence on users.
    A good assistant for high efficiency production.
    Freshman can produce perfect product.
  • Not only buy a machine,but also get a brain.
    Process Expert
    Operation Expert
    Maintenance Expert

About Us

20+

YEARS
Supplier of slitting and rewinding solutions

Intelligent slitting , reduce the dependence on users

Established in December of 1999, Hangzhou Dahua Industry Control Technology Co., Ltd. is a shareholder and national high-technology/software enterprise with multi-investment. Our focus is to specialize in high value-added R&D, sales, assembly, commission and service for slitting and rewinding industry.


As a leader of slitting and rewinding technology, we find a perfect solution for our everchanging customer requirements, and integrate this into our products design and manufacture, clarified the standard and positioning of slitter, and established version 1.0, version 2.0, version 3.0 and the concept of version 4.0, respectively. With the application of intelligent technologies, our products have been achieved high efficiency and high quality production with minimum dependence on operators. Currently our products have been very popular among the customers because of reliable R&D technologies, complete product series, superior quality and reasonable price, the products are exported to Germany, the United States, Japan and other developed countries, has become the preferred brand of the majority of customers.


Patents and Certifications

Dedicated to the high performance of products and soft technology

After more than 20 years of precipitation and accumulation, our independently developed products and technologies have obtained 32 software copyrights, 42 utility model patents, 10 invention patents and 3 appearance patents

  • CE certification
  • ISO9001 certification
  • Alibaba certification
Innovation Create Possibility

MEDIA & NEWS

Provide you with the latest enterprise and industry news

  • Feb23,2024

    How does Secondary Slitter process optical films with specific optical properties, such as transparency or light diffusion?

    Processing optical movies with unique optical homes, inclusive of transparency or mild diffusion, requires careful dealing with to preserve these houses along the slit edges. Here's how the Secondary ...

    READ MORE
  • Feb18,2024

    Can the Secondary Slitter handle specialty materials with unique properties, such as adhesive-backed films or films with special coatings?

    Yes, the Secondary Slitter is often designed to handle specialty materials with unique properties, including adhesive-backed films or films with special coatings. Here's an explanation: Adhesive-Back...

    READ MORE
  • Feb01,2024

    How does the Rewinder Doctor Machine handle changes in material width during rewinding?

    The Rewinder Doctor Machine is designed to handle changes in material width during rewinding. Here is a detailed explanation of how it accomplishes this: Web Tension Control: The Rewinder Doctor Mach...

    READ MORE
  • Jan25,2024

    How does Plastic Film Slitter handle heat-sealable films to ensure clean slitting without affecting the film's heat-sealability capabilities?

    Handling heat-sealable films with precision for the duration of the slitting method is vital to make certain easy cuts without compromising the movie's heat-sealability abilities. The Plastic Film Sli...

    READ MORE
Industry Knowledge

What is Slitter Machine?

A slitter machine is a piece of equipment used in manufacturing and production facilities to cut materials into narrower strips or slits. The machine operates by unwinding a large roll of material, such as metal, plastic, paper, or fabric, and passing it through a series of sharp circular blades or knives that cut it into the desired width or lengths.

Slitter machines are commonly used in industries such as metalworking, textiles, paper and packaging, and plastics. They can be used to create a wide range of products, including sheet metal strips, plastic films, paper products, adhesive tapes, and more.

There are different types of slitter machines available, ranging from manual to fully automated systems. The choice of machine depends on the specific requirements of the material being cut and the level of precision and speed needed for the production process.

The Functions of Slitter Machine

The primary function of a slitter machine is to cut a large roll of material into smaller, narrower strips or rolls with a specific width and length. This process is also known as slitting. However, depending on the type of slitter machine and the material being cut, there are other functions that the machine may perform. Here are some common functions of a slitter machine:

Unwinding: The slitter machine unwinds the material from a large roll onto a spool, where it can be processed through the cutting blades.

Cutting: The cutting blades, which can be circular or straight, cut the material into the desired width or length.

Rewinding: After cutting, the slitter machine rewinds the material into smaller rolls or spools with the desired width and length.

Inspection: Some slitter machines have built-in inspection systems that check the quality of the material being cut, such as detecting defects, measuring thickness, or checking for proper alignment.

Slitting in different patterns: Depending on the material being cut, the slitter machine may be able to create different patterns or shapes, such as zigzag or perforated cuts.

Trimming and edge guiding: To ensure precision and accuracy during the cutting process, the slitter machine may include trimming and edge guiding systems that keep the material aligned and remove any uneven edges.

Overall, the slitter machine plays a critical role in the manufacturing and production of various materials, providing accurate and efficient cutting processes that meet specific requirements for different industries.
